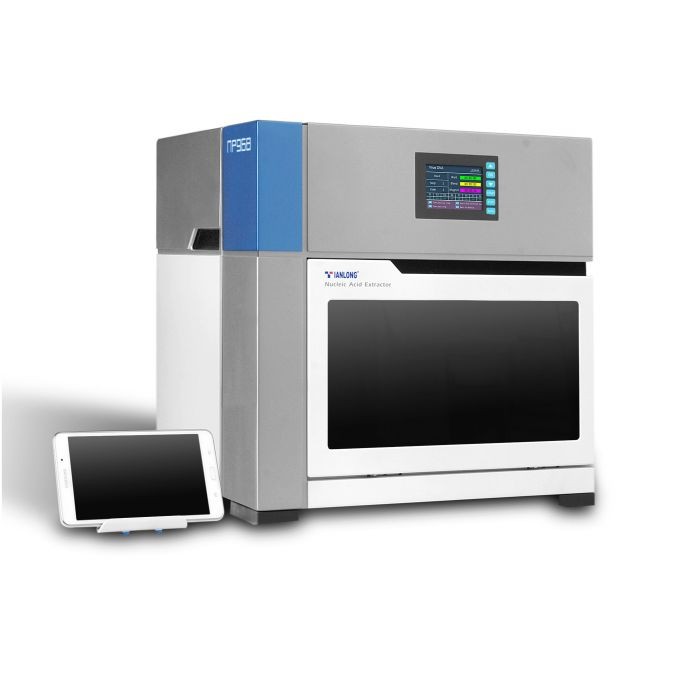

Based on the automated extraction method of magnetic bead adsorption separation, Tianlong Libex Nucleic Acid Extractor can well overcome the shortcomings of conventional nucleic acid extraction methods and achieve rapid and efficient sample preparation.

With the appropriate nucleic acid extraction reagents, it can process serum, plasma, whole blood, swabs, amniotic fluid, feces, tissue and tissue lavage, paraffin sections, bacteria, fungi and other sample types.

It is widely used in the fields of disease prevention and control, animal quarantine, clinical diagnosis, entry-exit inspection and quarantine, food and drug administration, forensic medicine, teaching and scientific researches.

Nucleic Acid Extractor
Product Features

Remote control via Android system smart phones or tablets by connecting to the built-in wifi of


Different package size of Pre-filled extraction kits are available for greater flexibility in sample throughput

Built-in UV disinfection module;

Ultra-silent operation.

Product Parameters
Product ModelLibex
Authoritative Certifications:NMPA, CE, FDA,KFDA, etc.
Sample Throughput1-32
Processing Volume30—1000 μL
Magnetic Bead Residue<1%
Applicable Consumables96-deep-well plates, 6-tube strips
Heating TemperaturePyrolysis heating: room temperature ~ 120°C
Elution heating: room temperature ~ 120°C
Operating Noise <65 dB
Oscillation MixingAdjustable: multi-mode, multi-level mixing.
Reagent TypeMagnetic beads-based extraction kits
Operation ModeA. Remote control via smart phone /tablet (Android system);
B. Screen/button operation
Experimental StorageUp to 15 sets of programs can be stored in the instrument.
Android applications can store > 500 programs.
Program ManagementPrograms can be created, edited, applied and deleted with high flexibility.
Pollution ControlBuilt-in UV disinfection module
Power Failure ProtectionIn the event of an unexpected power failure, there are options available whether or not to continue the experiment.
Network CommunicationMobile/tablet wifi remote control;
Ethernet remote control applicable.
Size and Weight440 mm*435 mm*445 mm (W*D*H), 31.5 Kg
